RS
Low Profile, Programmable Turntable Unit
The RS Series is a table-type design with a low profile, a hollow shaft through hole and a right angle input. Building on the excellent load support of the RV Series, the RS Series can support a maximum of 9 tons. It comes with fittings compatible with major servo motors and is sealed with grease before shipping. The table-type design significantly reduces customer design and assembly work and cost.
Product Features:
- Table type
- Right angle input
- Maximum load of 9 tons
- Backlash less than 1 arc.min. (1.5 for RS-50A)
- Lost motion less than 1 arc.min. (1.5 for RS-50A)
- Internal main bearing
- Major motor coupling parts included
- Sealed grease

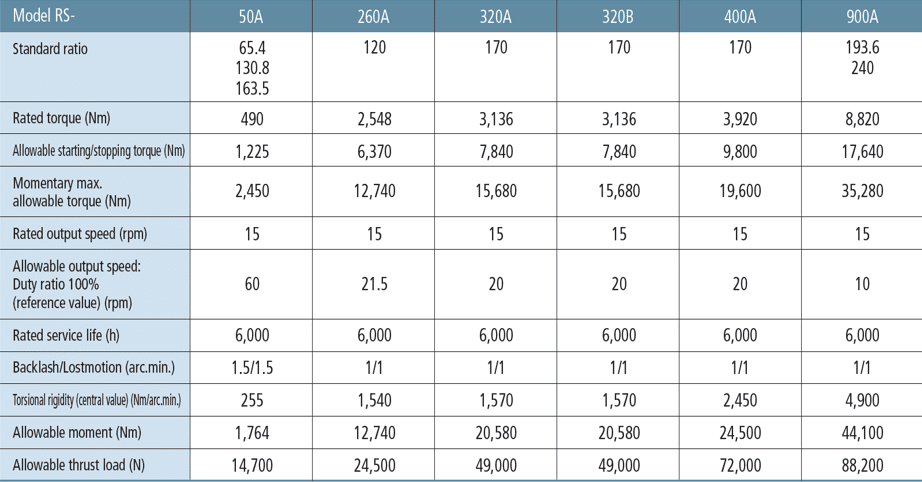

Specifications
Downloads
Log in to unlock the downloads.
My Account Product Catalog
Product CAD Drawing 2D
Product CAD Drawing 3D
