RDR-E
Right angle input type precision reduction gearhead model (Solid Series)
The RD2 Series introduces the right angle type as a new input option. A right angle input allows lower-profile designs that fit into smaller spaces. Especially useful for turntable applications, the right angle input type maintains high-accuracy positioning while allowing space-saving, low-profile designs.
Product Features:
- Backlash less than 1.5 arc.min.
- Lost motion less than 1.5 arc.min.
- Right angle input type
- Internal main bearing
- Major motor coupling parts included
- Sealed grease

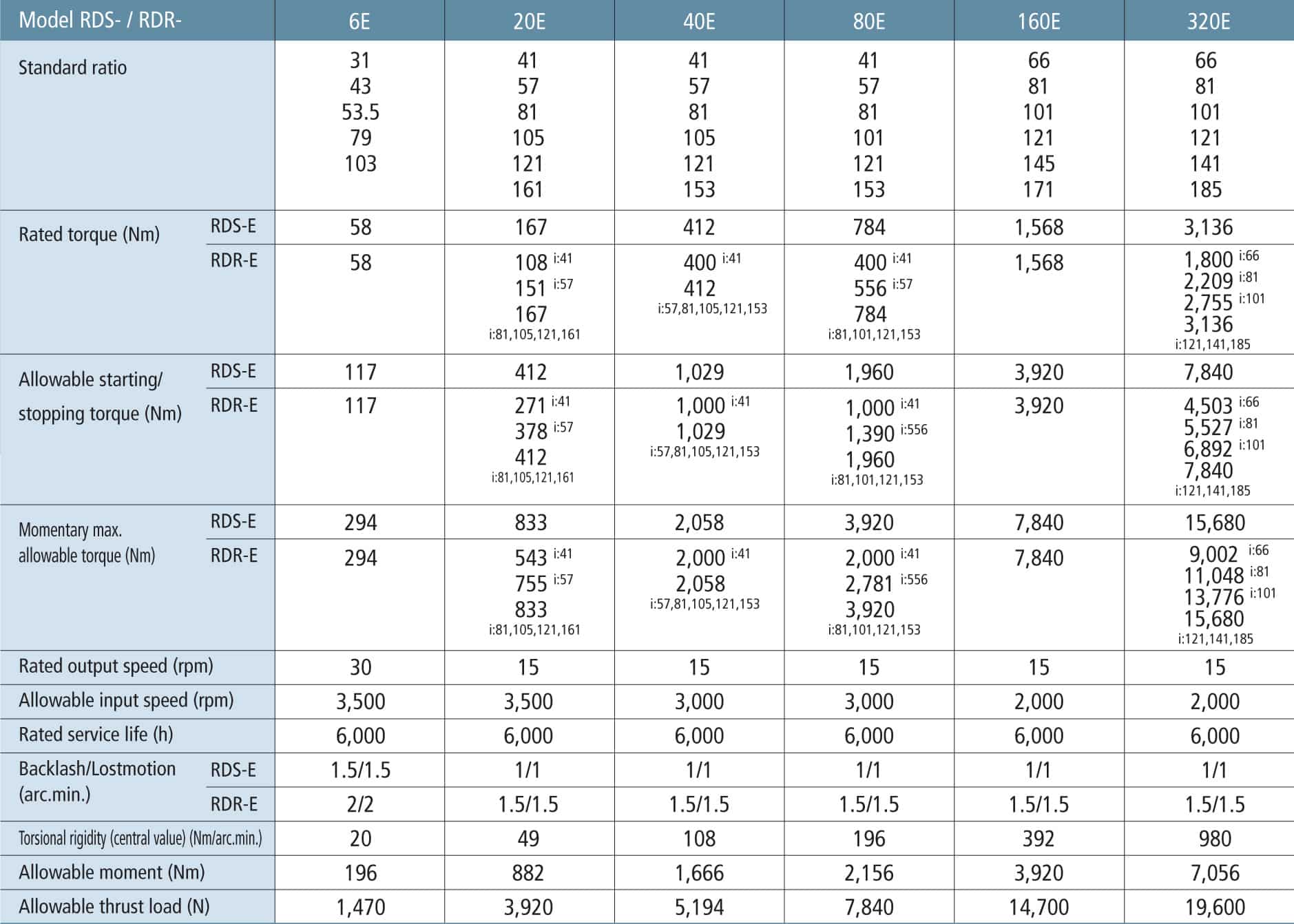

Specifications
Downloads
Log in to unlock the downloads.
My Account Product Catalog
Product CAD Drawing 2D
Product CAD Drawing 3D
Parts 2D CAD
Parts 3D CAD
