RDS-C
Advanced precision reduction gearhead model (Hollow Shaft Series)
The RD Series precision reduction gearhead has been relaunched as the RD2 Series. It keeps the same easy-to-use design, with fittings compatible with all major servo motors and grease sealed in before shipping, while the new series also reduces total length by up to 15%.
Product Features:
- Backlash less than 1 arc.min.
- Lost motion less than 1 arc.min.
- Internal main bearing
- Major motor coupling parts included
- Sealed grease

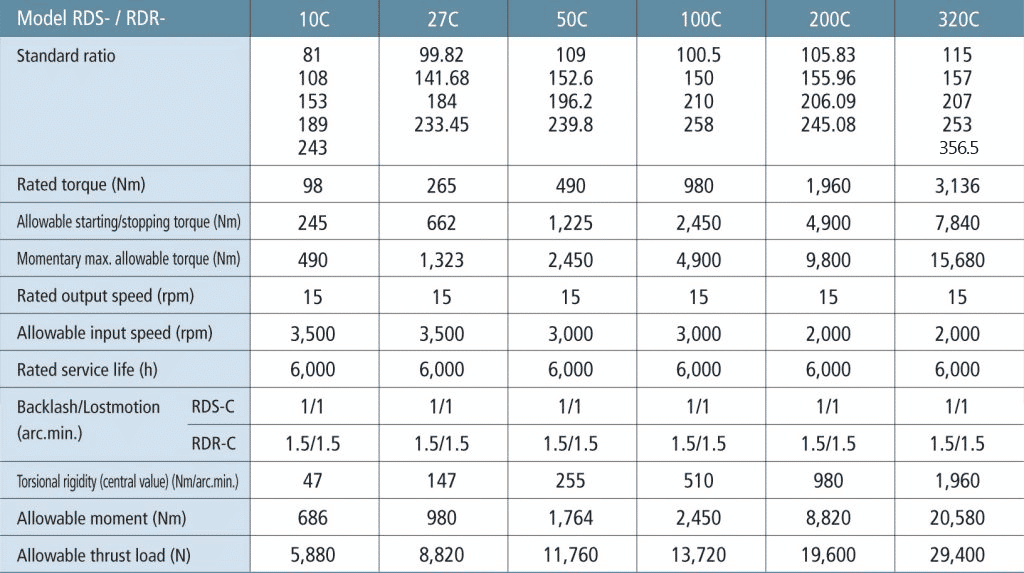

Specifications
Downloads
Log in to unlock the downloads.
My Account Product Catalog
Product CAD Drawing 2D
Product CAD Drawing 3D
Parts 2D CAD
Parts 3D CAD
