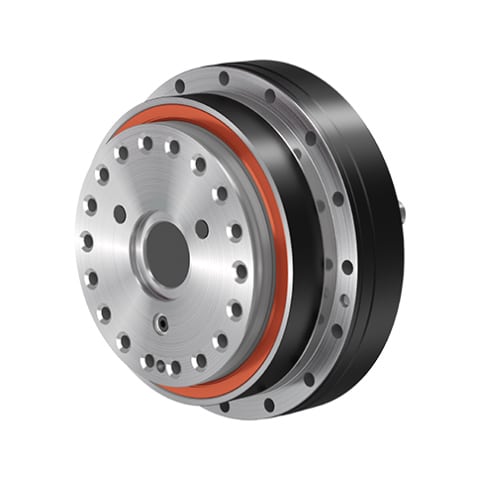

RDP-E
Pulley input type precision reduction gearhead model (Solid Series)
The RD2 Series introduces the pulley type as a new input option. The pulley input gives design flexibility in where the motor is positioned, and the speed ratio can also be adjusted with the pulley. This lets designers lay out the drive to suit how each machine will be used.
Product Features:
- Backlash less than 1 arc.min.
- Lost motion less than 1 arc.min.
- Pulley input type
- Internal main bearing
- Major motor coupling parts included
- Sealed grease

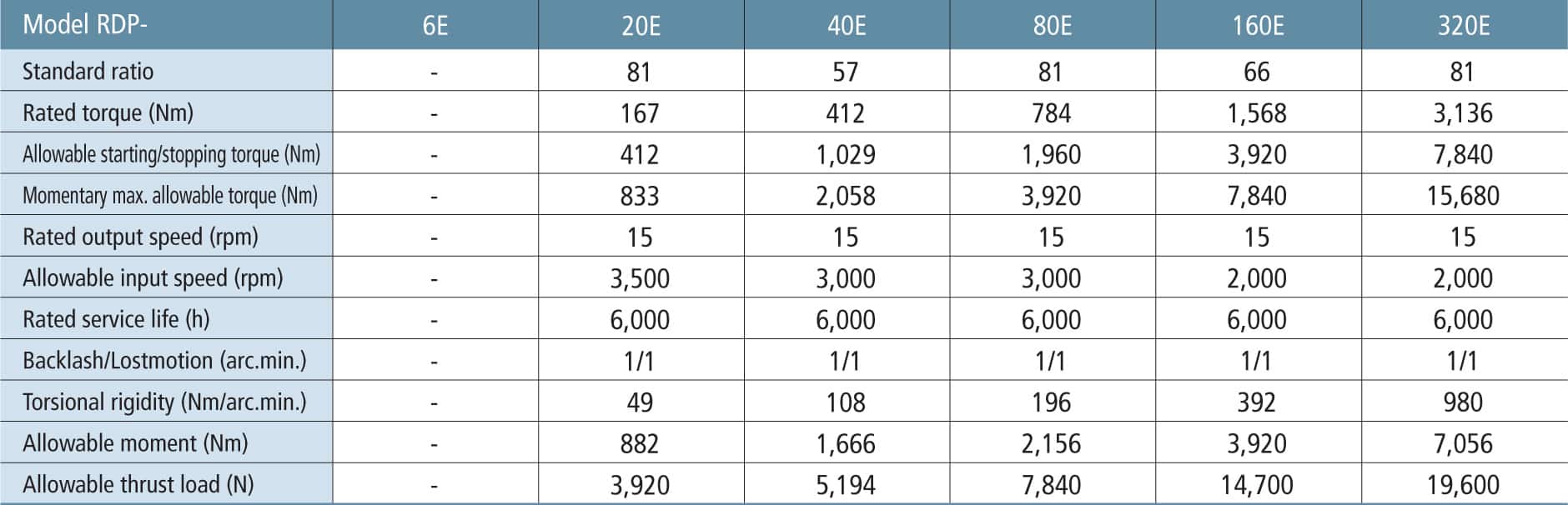

Specifications
Downloads
Log in to unlock the downloads.
My Account Product Catalog
Product CAD Drawing 2D
Product CAD Drawing 3D
Parts 2D CAD
Parts 3D CAD
Related Products
Gearboxes
RDS-E
Advanced precision reduction gearhead model (Solid Series)
Product Features:
- Backlash less than 1 arc.min.
- Lost motion less than 1 arc.min.
- Internal main bearing
- Major motor coupling parts included
- Sealed grease
Gearboxes

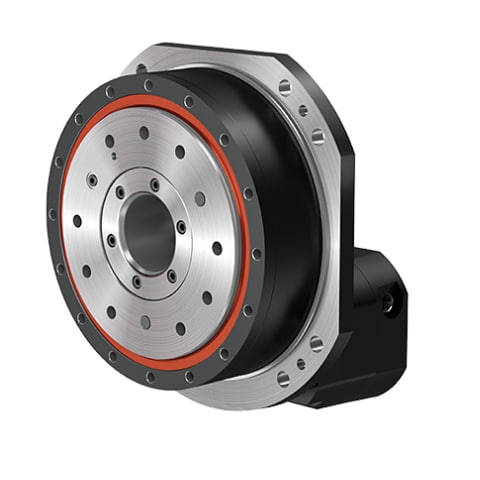

RDS-C
Advanced precision reduction gearhead model (Hollow Shaft Series)
Product Features:
- Backlash less than 1 arc.min.
- Lost motion less than 1 arc.min.
- Internal main bearing
- Major motor coupling parts included
- Sealed grease
Gearboxes

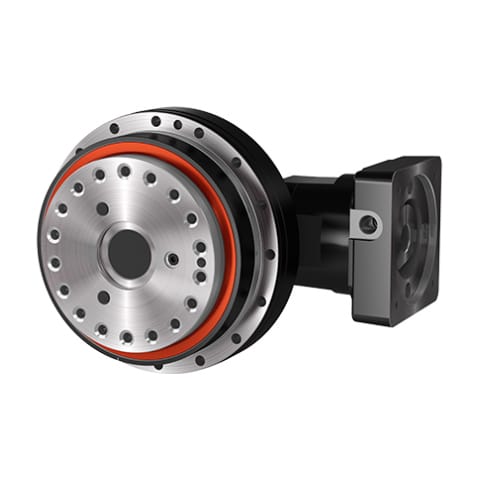

RDR-E
Right angle input type precision reduction gearhead model (Solid Series)
Product Features:
- Backlash less than 1.5 arc.min.
- Lost motion less than 1.5 arc.min.
- Right angle input type
- Internal main bearing
- Major motor coupling parts included
- Sealed grease
Gearboxes

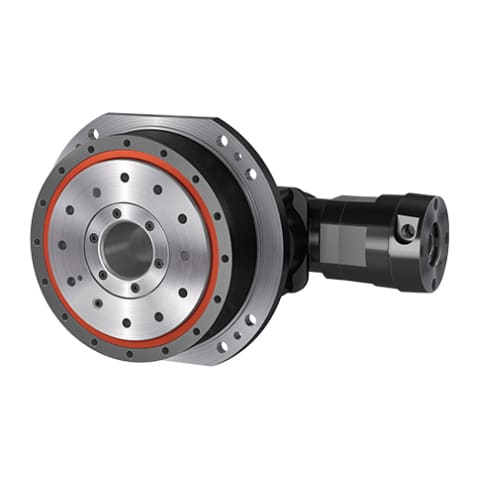

RDR-C
Right angle input type precision reduction gearhead model (Hollow Shaft Series)
Product Features:
- Backlash less than 1.5 arc.min.
- Lost motion less than 1.5 arc.min.
- Right angle input type
- Internal main bearing
- Major motor coupling parts included
- Sealed grease
Quick Mount

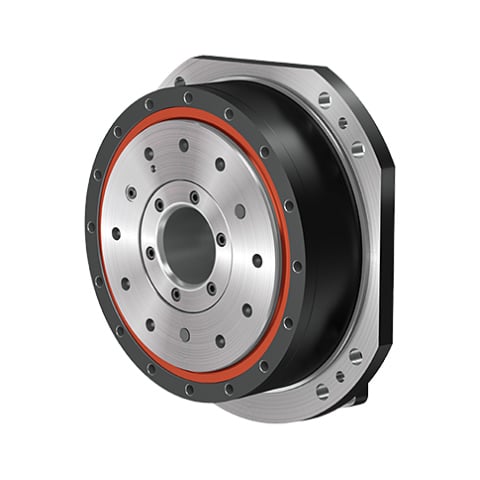

RDP-C
Pulley input type precision reduction gearhead model (Hollow Shaft Series)
Product Features:
- Backlash less than 1 arc.min.
- Lost motion less than 1 arc.min.
- Pulley input type
- Internal main bearing
- Major motor coupling parts included
- Sealed grease
Quick Mount

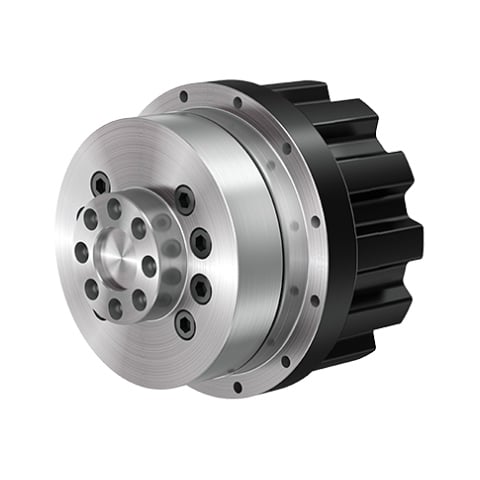

GH-P
Precision reduction gearhead model for high-speed rotation
Product Features:
- High-speed rotation
- Internal main bearing
- Major motor coupling parts included
- Sealed grease
Quick Mount

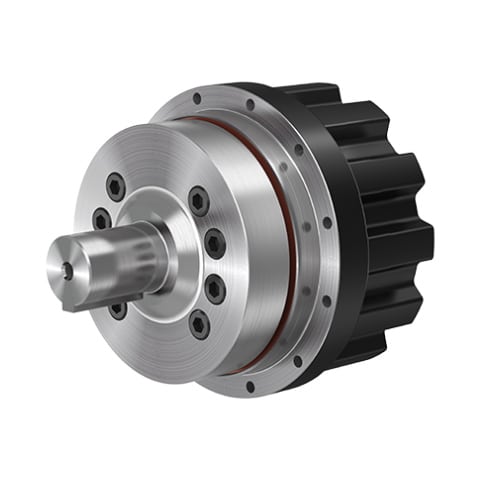

GH-S
Precision reduction gearhead model for high-speed rotation
Product Features:
- High-speed rotation
- Right angle input type
- Major motor coupling parts included
- Sealed grease
Quick Mount

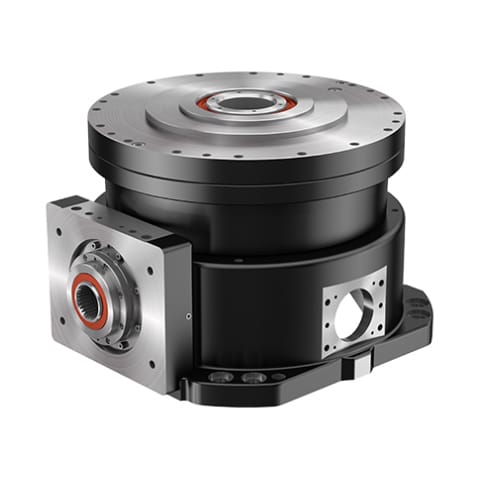

RS
