RH-C/CA
Precision reduction gearhead model for welding positioners
The RH Series is a precision gearhead model suited to welding positioners, with a slim profile, an integrated base flange and fittings compatible with major servo motors.
Product Features:
- Slim profile
- Integrated base flange design
- Large hollow shaft diameter (Φ120 mm: 320CA, Φ70 mm: 155C)
- Internal main bearing
- Sealed grease
- Backlash less than 1 arc.min.
- Lost motion less than 1 arc.min.
- Support for major motors

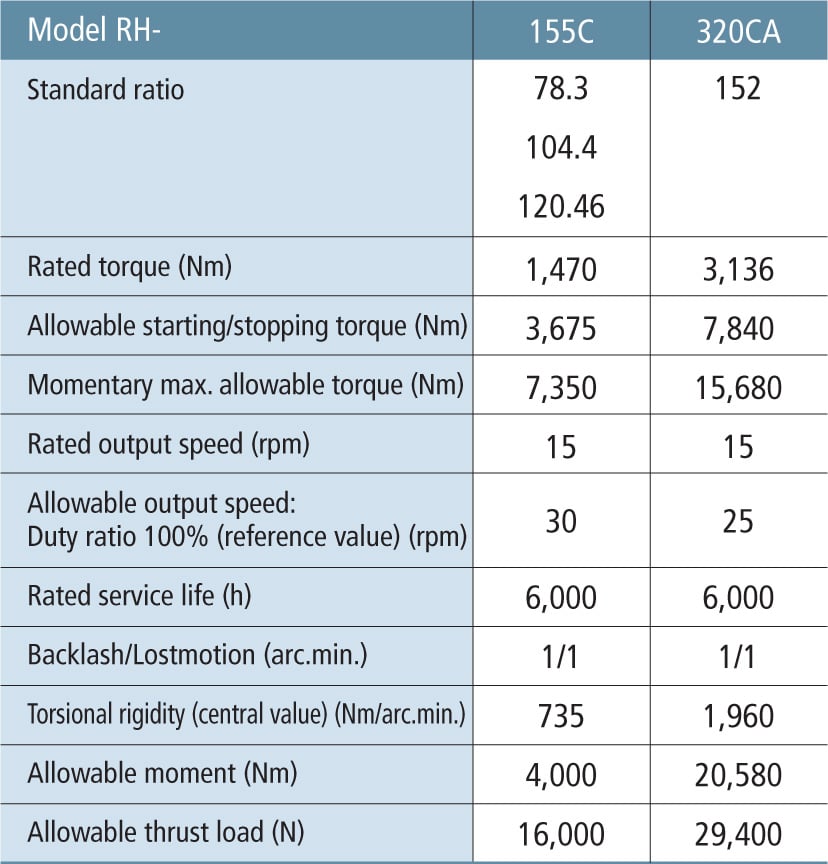

Specifications
Downloads
Log in to unlock the downloads.
My Account Product Catalog
Instruction Manual
Product CAD Drawing 2D
Product CAD Drawing 3D
