Short Gears
Strain wave gears with reduced axial length

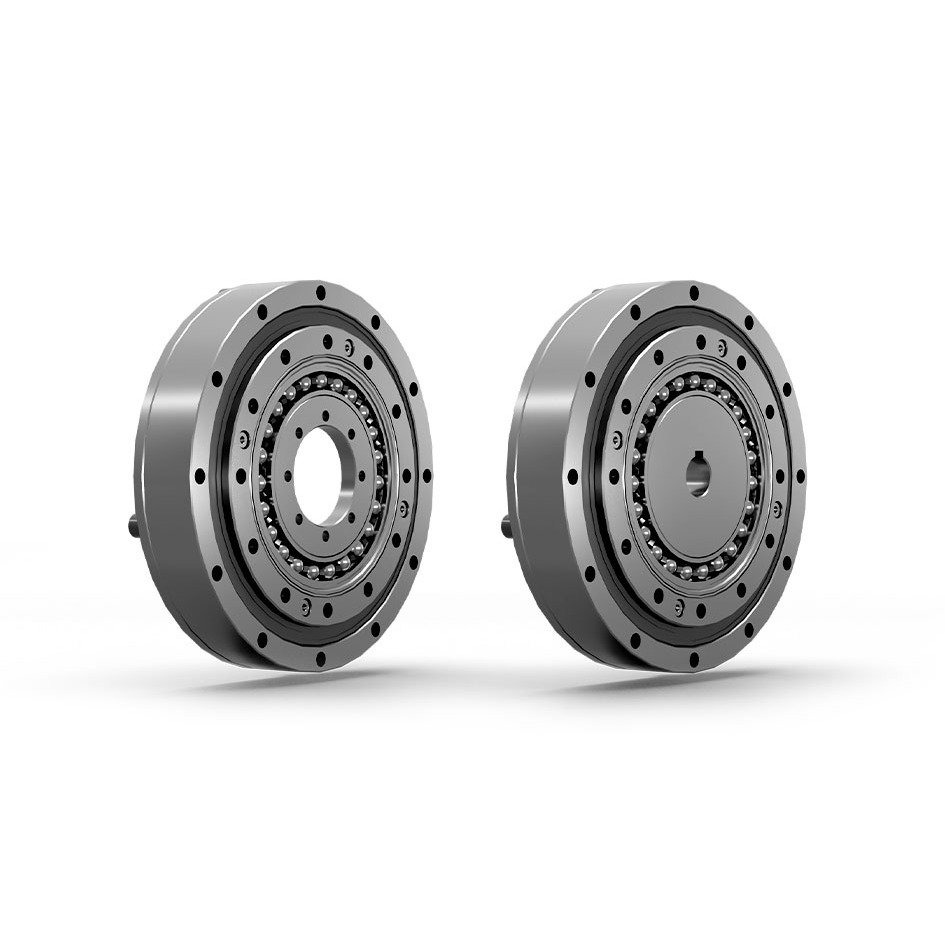

Nabtesco Short Gears are backlash-free strain wave gears with a reduced axial length. They were developed for compact axes and joints that need high torque density, precision and a long service life in a confined space. Compared with similar short-design strain wave gears, they offer 20% more torque and a 40% longer service life at the same size.
With its short gears, Nabtesco offers a more powerful variant: they deliver more torque within the same installation space, or the same output with a smaller footprint. This creates design flexibility for more compact axes, lighter connecting structures and more efficient overall designs. The longer service life also supports higher machine availability and reduces unplanned downtime.
Product Features:
- 20% more torque
- 40% longer service life (10,000 h instead of 7,000 h)
- 20% higher repeatable peak torque
- 20% higher acceleration torque
- 20% higher emergency stop torque
Specifications
| Technical Feature | Specification | |
|---|---|---|
| Gear Type | Backlash-free precision gearbox | |
| Gear Technology | Strain wave gear | |
| Design | Short design with reduced axial installation length | |
| Rated torque range | 4.5 to 115 Nm | |
| Variants | Hat type and cup type | |
| Hollow shaft | Available | |
Related Products
Strain Wave
Gear Sets
Component set and the simplest variant of the strain wave gear, with solid or hollow shaft.
Product Features:
- Flexible integration
- Precise and dynamic
- Individually customizable
Strain Wave
Gear Sets Plus
Strain wave component set with solid or hollow shaft, including the output bearing.
Product Features:
- Ready-to-install strain wave gears
- Incl. tilt-resistant output bearing
- Reduced design and assembly effort
Strain Wave
Gearbox Units
Plug-and-play strain wave gear with solid or hollow shaft, output and drive bearings and a sealing system.
Product Features:
- Backlash-free plug-and-play gearboxes
- Incl. output and drive bearing and sealing system
- High power density, compact design
Strain Wave
Digital Strain Wave Gear
Strain wave component set with solid or hollow shaft, smart sensors and artificial intelligence.
Product Features:
- Smart sensor technology for data-based optimizations
- Maximizing machine and robot availability
- Space-neutral: Dimensions like a standard gearbox
Strain Wave
Actuators
Plug-and-play strain wave drive with solid or hollow shaft, a complete system for your automation.
Product Features:
- High performance in a very compact design
- Simple plug-and-play solutions for quick integration
- Modular construction kit for maximum flexibility
