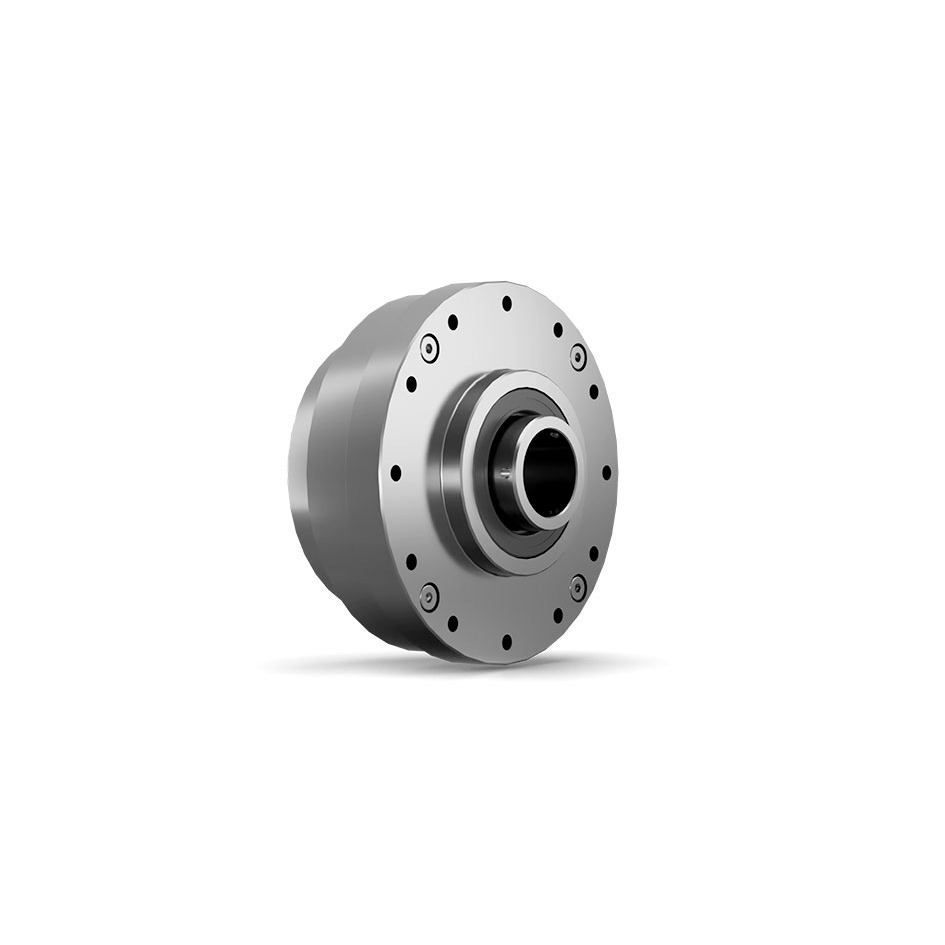

Gearbox Units
Our gearbox units combine strain wave technology and ease of use in a compact design. The backlash-free plug-and-play solutions are fully enclosed and have components such as output and drive bearings as well as a sealing system already on board. Users benefit from high performance, simple integration and reliable operation over a long service life.
The gearbox units are based on the gearbox sets and, in addition to a tilt-resistant output bearing like Gear Sets Plus, also have a tilt-resistant input bearing and a sealing system. The fully enclosed strain wave gears are ready for immediate installation and very easy to handle thanks to the plug-and-play concept. This enables significant gains in performance and efficiency in your automation. Depending on the application, you can choose between a hollow shaft variant for the passage of external media or a solid shaft with minimal mass inertia.
- Backlash-free plug-and-play gearboxes
- Incl. output and drive bearing and sealing system
- High power density, compact design
Specifications
| OU-HHN | 35 | 43 | 51 | 63 | 81 | |
|---|---|---|---|---|---|---|
| Reduction ratio | 50-100 | 50-120 | 30-160 | 30-160 | 30-160 | |
| Rated torque (Nm) | 7-10 | 21-31 | 15-52 | 27-87 | 54-178 | |
| Perm. acceleration/displacement torque (Nm) | 23-36 | 44-70 | 27-120 | 50-229 | 100-484 | |
| Emergency stop torque (Nm) | 46-70 | 91-143 | 50-191 | 95-408 | 200-892 | |
| Hysteresis loss (arc.min) | ˂1* | ˂1* | ˂1* | ˂1* | ˂1* | |
| Torsional stiffness (Nm/arc.min) | K1 (Nm) | 2 | 3.9 | 7 | 14 | 29 |
| K1 (kNm/rad) | 3,4-4,7 | 8,1-10 | 5,7-16 | 10-31 | 54-67 | |
| K2 (Nm) | 6.9 | 12 | 25 | 48 | 108 | |
| K2 (kNm/rad) | 4,7-6,1 | 11-14 | 7,1-25 | 13-50 | 78-110 | |
| K3 (Nm) | TRPT | TRPT | TRPT | TRPT | TRPT | |
| K3 (kNm/rad) | 5,7 -7,1 | 13 -16 | 11 -29 | 21 -57 | 98 -120 | |
| Bearing capacity | Max. permissible dynamic tilting moment (Nm) | 74 | 124 | 187 | 258 | 580 |
| Max. permissible static tilting moment (Nm) | 144 | 328 | 515 | 1,070 | 2,425 | |
| Hollow shaft diameter (mm) | 14 | 19 | 21 | 29 | 36 | |
| * not valid for i=30 | ||||||
