RV-N Series Gearbox

Os redutores cicloidais Nabtesco, que já são os mais vendidos na indústria de robótica, agora ainda mais desenvolvidos!

Os redutores compactos da série N oferecem um grande potencial! Com base em nossas engrenagens de redução RV que atingem 7 milhões de unidades já enviadas, os novos modelos RV N SERIES estão ainda mais compactos e leves.

Características do produto

Folga inferior a 1 arc.min.
Movimento perdido menos de 1 arc.min.

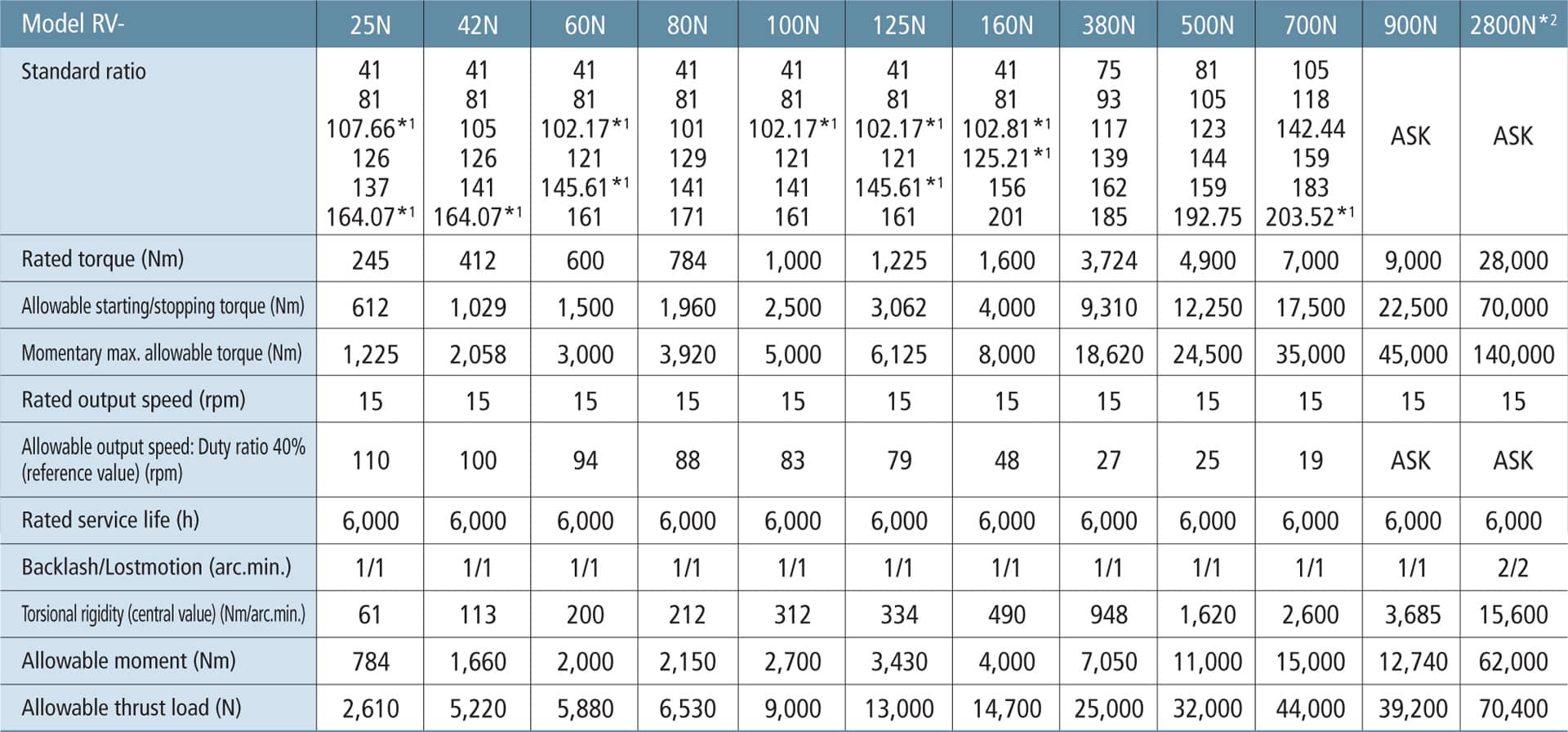

Especificações
Downloads

Catálogo do Produto

RV-N Series Brochure

RV-N Series Product Catalog

Desenho 2D Produto CAD

RV-100N-10217-A.dxf RV-100N-10217-Z.dxf RV-100N-121-A.dxf RV-100N-121-Z.dxf RV-100N-141-A.dxf RV-100N-141-Z.dxf RV-100N-161-A.dxf RV-100N-161-Z.dxf RV-100N-41-A.dxf RV-100N-41-Z.dxf RV-100N-81-A.dxf RV-100N-81-Z.dxf RV-125N-102.17-A.dxf RV-125N-102.17-Z.dxf RV-125N-121-A.dxf RV-125N-121-Z.dxf RV-125N-145.61-A.dxf RV-125N-145.61-Z.dxf RV-125N-161-A.dxf RV-125N-161-Z.dxf RV-125N-41-A.dxf RV-125N-41-Z.dxf RV-125N-81-A.dxf RV-125N-81-Z.dxf RV-160N-102.81-A.dxf RV-160N-102.81-Z.dxf RV-160N-125.21-A.dxf RV-160N-125.21-Z.dxf RV-160N-156-A.dxf RV-160N-156-Z.dxf RV-160N-201-A.dxf RV-160N-201-Z.dxf RV-160N-41-A.dxf RV-160N-41-Z.dxf RV-160N-81-A.dxf RV-160N-81-Z.dxf RV-25N-107.66-A.dxf RV-25N-107.66-B.dxf RV-25N-107.66-Z.dxf RV-25N-126-A.dxf RV-25N-126-B.dxf RV-25N-126-Z.dxf RV-25N-137-A.dxf RV-25N-137-B.dxf RV-25N-137-Z.dxf RV-25N-164.07-A.dxf RV-25N-164.07-B.dxf RV-25N-164.07-Z.dxf RV-25N-41-A.dxf RV-25N-41-B.dxf RV-25N-41-Z.dxf RV-25N-81-A.dxf RV-25N-81-B.dxf RV-25N-81-Z.dxf RV-380N-117-A.dxf RV-380N-117-B.dxf RV-380N-117-Z.dxf RV-380N-139-A.dxf RV-380N-139-B.dxf RV-380N-139-Z.dxf RV-380N-162-A.dxf RV-380N-162-B.dxf RV-380N-162-Z.dxf RV-380N-185-A.dxf RV-380N-185-B.dxf RV-380N-185-Z.dxf RV-380N-75-A.dxf RV-380N-75-B.dxf RV-380N-75-Z.dxf RV-380N-93-A.dxf RV-380N-93-B.dxf RV-380N-93-Z.dxf RV-42N-105-A.dxf RV-42N-105-B.dxf RV-42N-105-Z.dxf RV-42N-126-A.dxf RV-42N-126-B.dxf RV-42N-126-Z.dxf RV-42N-141-A.dxf RV-42N-141-B.dxf RV-42N-141-Z.dxf RV-42N-16407-A.dxf RV-42N-16407-B.dxf RV-42N-16407-Z.dxf RV-42N-41-A.dxf RV-42N-41-B.dxf RV-42N-41-Z.dxf RV-42N-81-A.dxf RV-42N-81-B.dxf RV-42N-81-Z.dxf RV-500N-105-A.dxf RV-500N-105-B.dxf RV-500N-105-Z.dxf RV-500N-123-A.dxf RV-500N-123-B.dxf RV-500N-123-Z.dxf RV-500N-144-A.dxf RV-500N-144-B.dxf RV-500N-144-Z.dxf RV-500N-159-A.dxf RV-500N-159-B.dxf RV-500N-159-Z.dxf RV-500N-192.75-A.dxf RV-500N-192.75-B.dxf RV-500N-192.75-Z.dxf RV-500N-81-A.dxf RV-500N-81-B.dxf RV-500N-81-Z.dxf RV-60N-102.17-A.dxf RV-60N-102.17-B.dxf RV-60N-102.17-Z.dxf RV-60N-121-A.dxf RV-60N-121-B.dxf RV-60N-121-Z.dxf RV-60N-145.61-A.dxf RV-60N-145.61-B.dxf RV-60N-145.61-Z.dxf RV-60N-161-A.dxf RV-60N-161-B.dxf RV-60N-161-Z.dxf RV-60N-41-A.dxf RV-60N-41-B.dxf RV-60N-41-Z.dxf RV-60N-81-A.dxf RV-60N-81-B.dxf RV-60N-81-Z.dxf RV-700N-105-A.dxf RV-700N-105-B.dxf RV-700N-105-Z.dxf RV-700N-118-A.dxf RV-700N-118-B.dxf RV-700N-118-Z.dxf RV-700N-142.44-A.dxf RV-700N-142.44-B.dxf RV-700N-142.44-Z.dxf RV-700N-159-A.dxf RV-700N-159-B.dxf RV-700N-159-Z.dxf RV-700N-183-A.dxf RV-700N-183-B.dxf RV-700N-183-Z.dxf RV-700N-203.52-A.dxf RV-700N-203.52-B.dxf RV-700N-203.52-Z.dxf RV-80N-101-A.dxf RV-80N-101-B.dxf RV-80N-101-Z.dxf RV-80N-129-A.dxf RV-80N-129-B.dxf RV-80N-129-Z.dxf RV-80N-141-A.dxf RV-80N-141-B.dxf RV-80N-141-Z.dxf RV-80N-171-A.dxf RV-80N-171-B.dxf RV-80N-171-Z.dxf RV-80N-41-A.dxf RV-80N-41-B.dxf RV-80N-41-Z.dxf RV-80N-81-A.dxf RV-80N-81-B.dxf RV-80N-81-Z.dxf

Desenho 3D Produto CAD

RV-100N-10217 RV-125N-10217 A type Input Gear.STEP RV-100N-10217-Z.STEP RV-100N-121 A type Input Gear.STEP RV-100N-121-Z.STEP RV-100N-141 A type Input Gear.STEP RV-100N-141-Z.STEP RV-100N-161 RV-125N-161 A type Input Gear.STEP RV-100N-161-Z.STEP RV-100N-41 RV-125N-41 A type Input Gear.STEP RV-100N-41-Z.STEP RV-100N-81 A type Input Gear.STEP RV-100N-81-Z.STEP RV-125N-102.17 RV-100N-102.17 A type Input Gear.STEP RV-125N-102.17-Z.STEP RV-125N-121 A type Input Gear.STEP RV-125N-121-Z.STEP RV-125N-145.61 A type Input Gear.STEP RV-125N-145.61-Z.STEP RV-125N-161 RV-100N-161 A type Input Gear.STEP RV-125N-161-Z.STEP RV-125N-41 RV-100N-41 A type Input Gear.STEP RV-125N-41-Z.STEP RV-125N-81 A type Input Gear.STEP RV-125N-81-Z.STEP RV-160N-102.81 A type Input Gear.STEP RV-160N-102.81-Z.STEP RV-160N-125.21 A type Input Gear.STEP RV-160N-125.21-Z.STEP RV-160N-156 A type Input Gear.STEP RV-160N-156-Z.STEP RV-160N-201 A type Input Gear.STEP RV-160N-201-Z.STEP RV-160N-41 A type Input Gear.STEP RV-160N-41-Z.STEP RV-160N-81 A type Input Gear.STEP RV-160N-81-Z.STEP RV-25N-107.66 A type Input Gear.STEP RV-25N-107.66 B type Input Gear.STEP RV-25N-107.66-Z.STEP RV-25N-126 A type Input Gear.STEP RV-25N-126 B type Input Gear.STEP RV-25N-126-Z.STEP RV-25N-137 A type Input Gear.STEP RV-25N-137 B type Input Gear.STEP RV-25N-137-Z.STEP RV-25N-164.07 A type Input Gear.STEP RV-25N-164.07 B type Input Gear.STEP RV-25N-164.07-Z.STEP RV-25N-41 A type Input Gear.STEP RV-25N-41 B type Input Gear.STEP RV-25N-41-Z.STEP RV-25N-81 A type Input Gear.STEP RV-25N-81 B type Input Gear.STEP RV-25N-81-Z.STEP RV-380N-117 A type Input Gear.STEP RV-380N-117 B type Input Gear.STEP RV-380N-117-Z.STEP RV-380N-139 A type Input Gear.STEP RV-380N-139 B type Input Gear.STEP RV-380N-139-Z.STEP RV-380N-162 A type Input Gear.STEP RV-380N-162 B type Input Gear.STEP RV-380N-162-Z.STEP RV-380N-185 A type Input Gear.STEP RV-380N-185 B type Input Gear.STEP RV-380N-185-Z.STEP RV-380N-75 A type Input Gear.STEP RV-380N-75 B type Input Gear.STEP RV-380N-75-Z.STEP RV-380N-93 A type Input Gear.STEP RV-380N-93 B type Input Gear.STEP RV-380N-93-Z.STEP RV-42N-105 A type Input Gear.STEP RV-42N-105 B type Input Gear.STEP RV-42N-105-Z.STEP RV-42N-126 A type Input Gear.STEP RV-42N-126 B type Input Gear.STEP RV-42N-126-Z.STEP RV-42N-141 A type Input Gear.STEP RV-42N-141 B type Input Gear.STEP RV-42N-141-Z.STEP RV-42N-16407 A type Input Gear.STEP RV-42N-16407 B type Input Gear.STEP RV-42N-16407-Z.STEP RV-42N-41 A type Input Gear.STEP RV-42N-41 B type Input Gear.STEP RV-42N-41-Z.STEP RV-42N-81 A type Input Gear.STEP RV-42N-81 B type Input Gear.STEP RV-42N-81-Z.STEP RV-500N-105 A type Input Gear.STEP RV-500N-105 B type Input Gear.STEP RV-500N-105-Z.STEP RV-500N-123 A type Input Gear.STEP RV-500N-123 B type Input Gear.STEP RV-500N-123-Z.STEP RV-500N-144 A type Input Gear.STEP RV-500N-144 B type Input Gear.STEP RV-500N-144-Z.STEP RV-500N-159 A type Input Gear.STEP RV-500N-159 B type Input Gear.STEP RV-500N-159-Z.STEP RV-500N-192.75 A type Input Gear.STEP RV-500N-192.75 B type Input Gear.STEP RV-500N-192.75-Z.STEP RV-500N-81 A type Input Gear.STEP RV-500N-81 B type Input Gear.STEP RV-500N-81-Z.STEP RV-60N-102.17 A type Input Gear.STEP RV-60N-102.17 B type Input Gear.STEP RV-60N-102.17-Z.STEP RV-60N-121 A type Input Gear.STEP RV-60N-121 B type Input Gear.STEP RV-60N-121-Z.STEP RV-60N-145.61 A type Input Gear.STEP RV-60N-145.61 B type Input Gear.STEP RV-60N-145.61-Z.STEP RV-60N-161 A type Input Gear.STEP RV-60N-161 B type Input Gear.STEP RV-60N-161-Z.STEP RV-60N-41 A type Input Gear.STEP RV-60N-41 B type Input Gear.STEP RV-60N-41-Z.STEP RV-60N-81 A type Input Gear.STEP RV-60N-81 B type Input Gear.STEP RV-60N-81-Z.STEP RV-700N-105 A type Input Gear.STEP RV-700N-105 B type Input Gear.STEP RV-700N-105-Z.STEP RV-700N-118 A type Input Gear.STEP RV-700N-118 B type Input Gear.STEP RV-700N-118-Z.STEP RV-700N-142.44 A type Input Gear.STEP RV-700N-142.44 B type Input Gear.STEP RV-700N-142.44-Z.STEP RV-700N-159 A type Input Gear.STEP RV-700N-159 B type Input Gear.STEP RV-700N-159-Z.STEP RV-700N-183 A type Input Gear.STEP RV-700N-183 B type Input Gear.STEP RV-700N-183-Z.STEP RV-700N-203.52 A type Input Gear.STEP RV-700N-203.52 B type Input Gear.STEP RV-700N-203.52-Z.STEP RV-80N-101 A type Input Gear.STEP RV-80N-101 B type Input Gear.STEP RV-80N-101-Z.STEP RV-80N-129 A type Input Gear.STEP RV-80N-129 B type Input Gear.STEP RV-80N-129-Z.STEP RV-80N-141 A type Input Gear.STEP RV-80N-141 B type Input Gear.STEP RV-80N-141-Z.STEP RV-80N-171 A type Input Gear.STEP RV-80N-171 B type Input Gear.STEP RV-80N-171-Z.STEP RV-80N-41 A type Input Gear.STEP RV-80N-41 B type Input Gear.STEP RV-80N-41-Z.STEP RV-80N-81 A type Input Gear.STEP RV-80N-81 B type Input Gear.STEP RV-80N-81-Z.STEP
